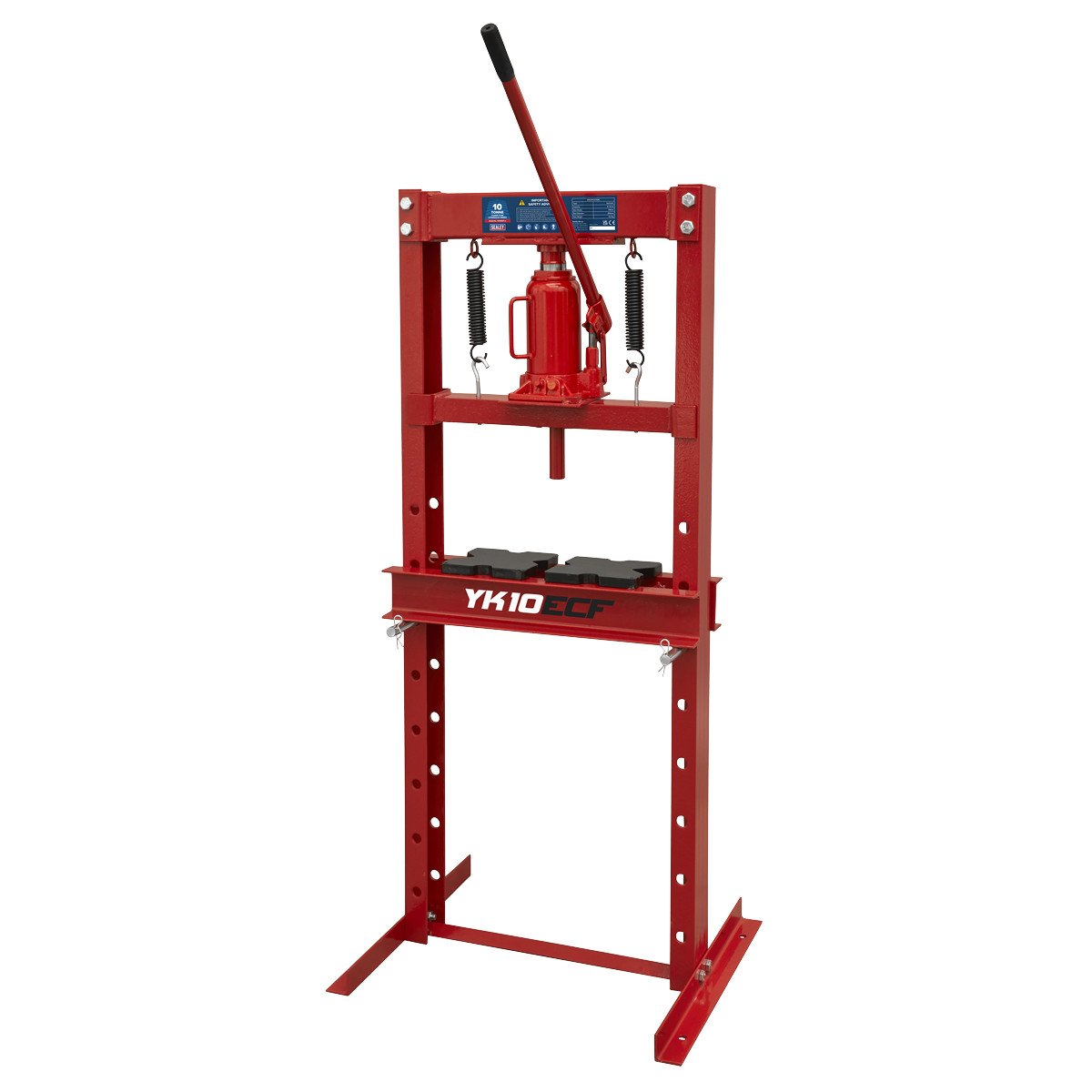

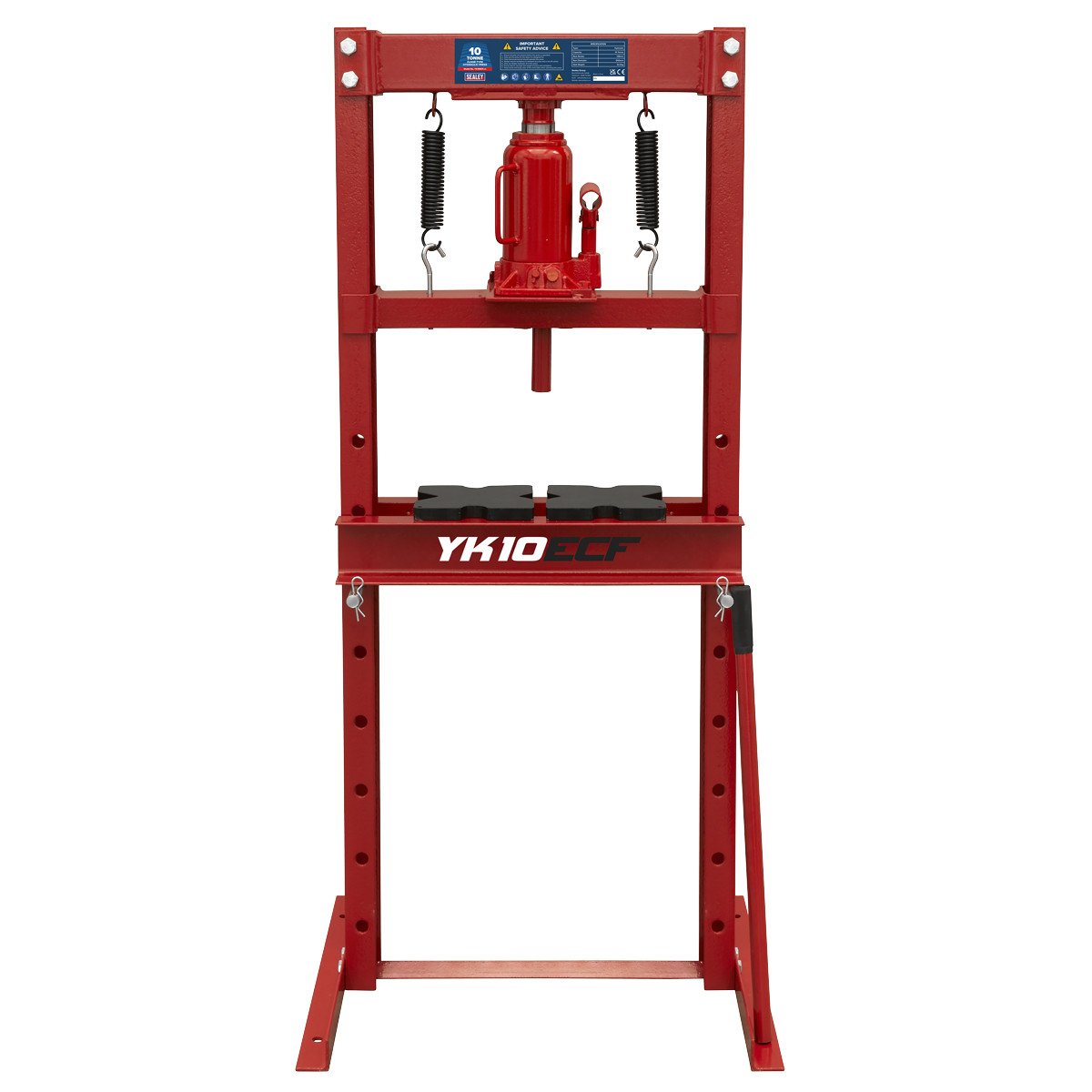

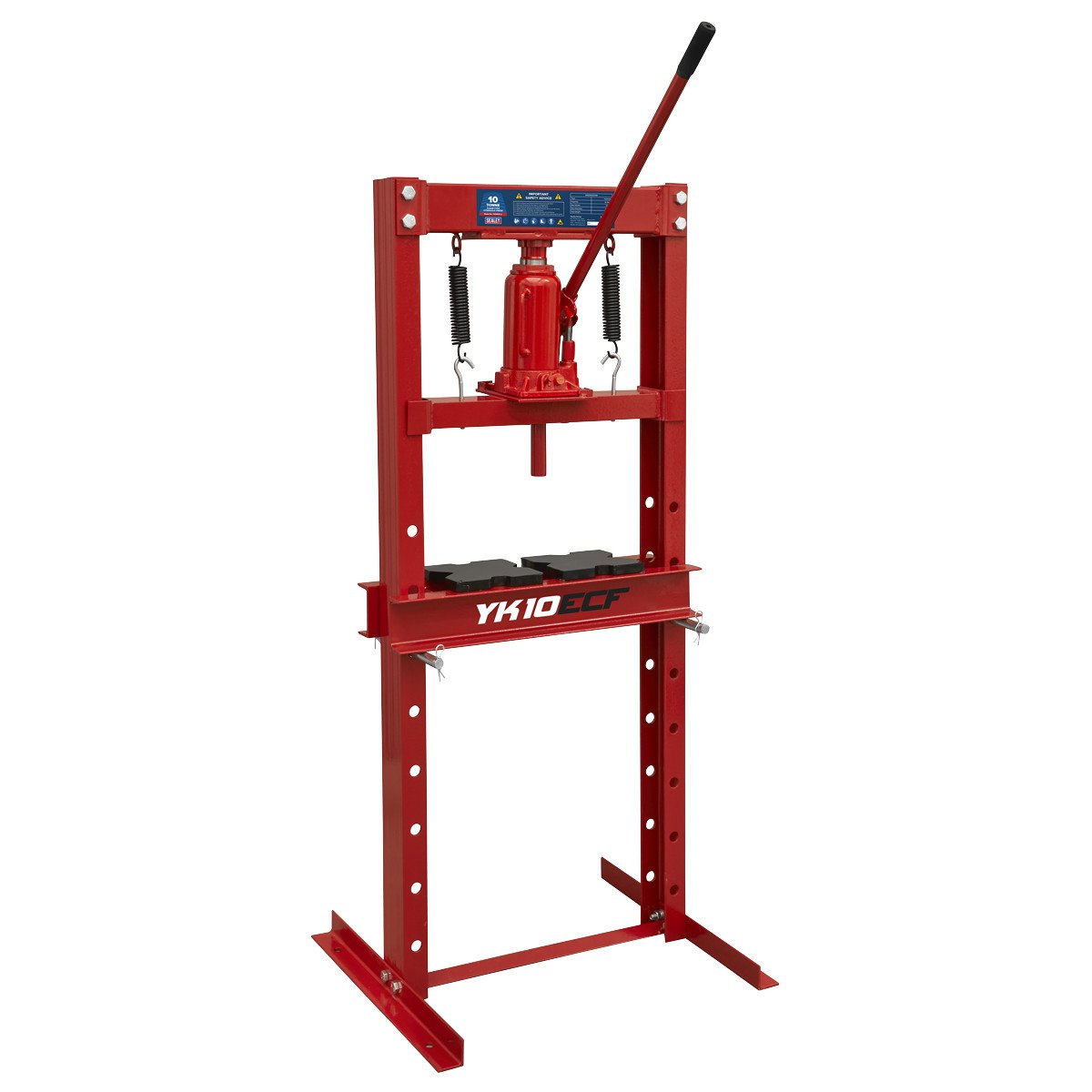

Sealey Hydraulic Floor Type Press 10 Tonne

Description

Delivery Information

Ask a question

Instructions

Material Safety Data Sheet

Parts Diagrams

Made from high quality steel with a powder coated paint finish, preventing corrosion for years to come. Adjustable table height relocation of two pins allows the table to be set at your optimum working height. Designed to remove and install bushings, bearings, ball joints, universal joints, pulleys and gears. Includes two arbor plates, assisting alignment and strengthening the press point position.

Model Number: YK10ECF
SOLID STEEL CONSTRUCTION - Made from high quality steel, with a powder coated paint finish, preventing corrosion for years to come.

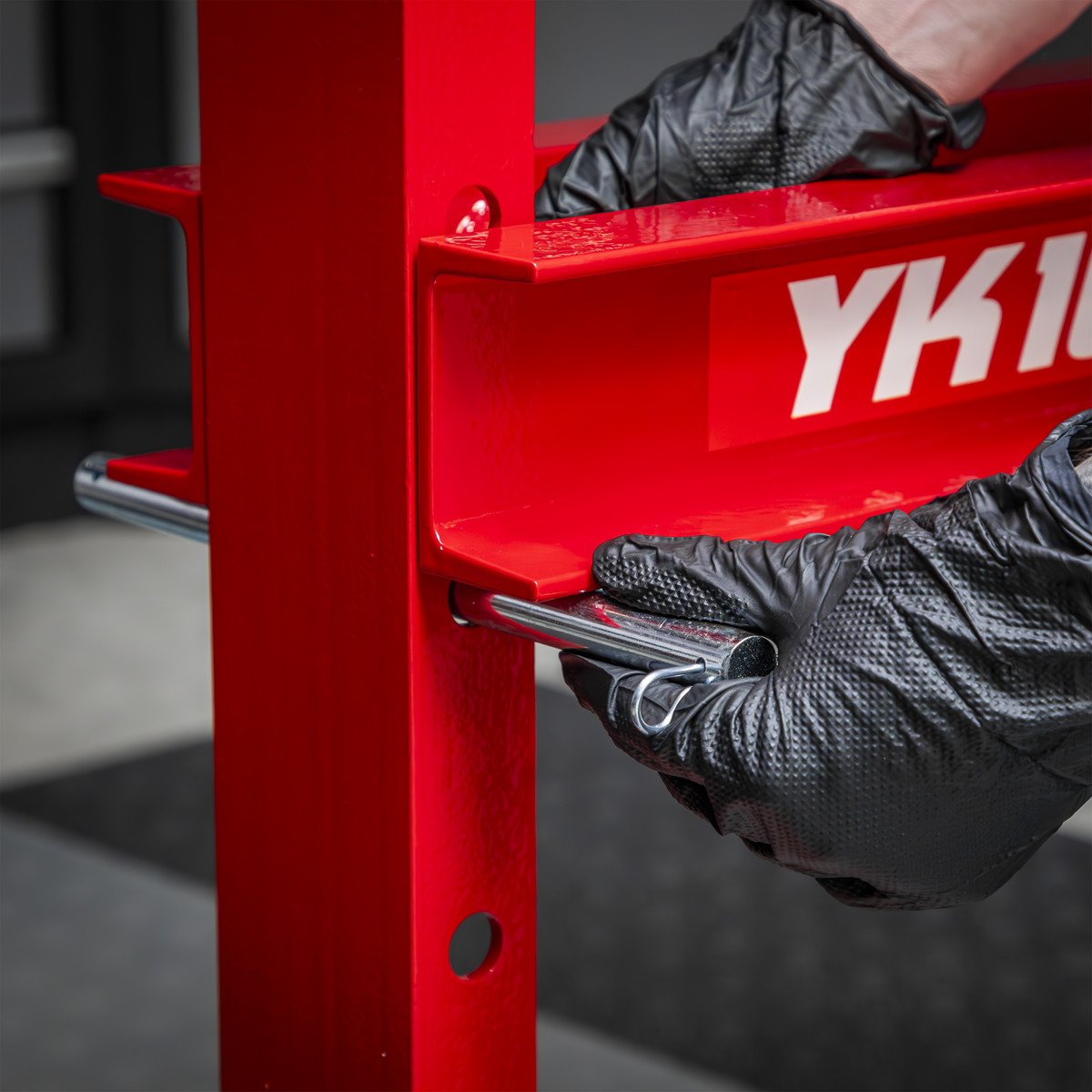

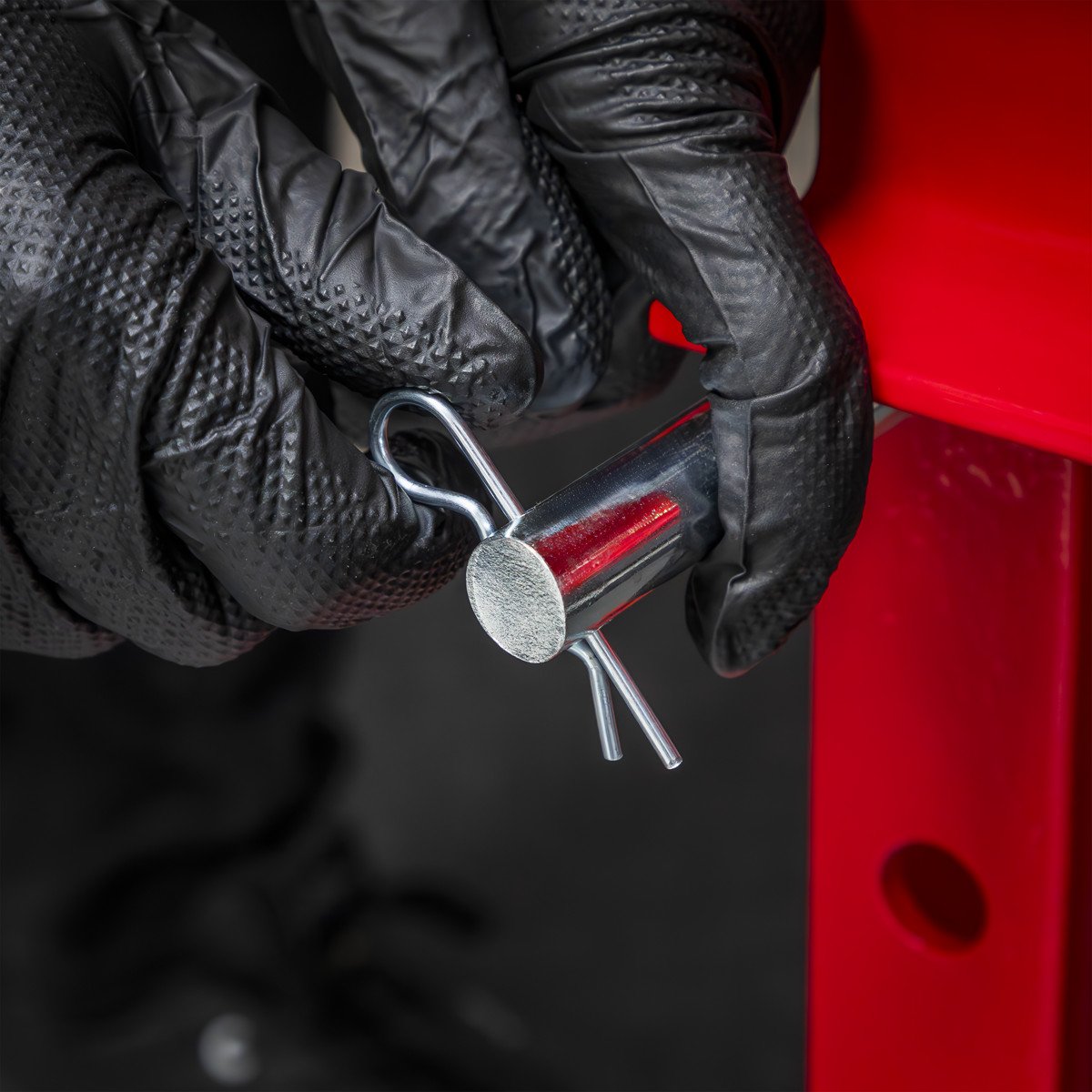

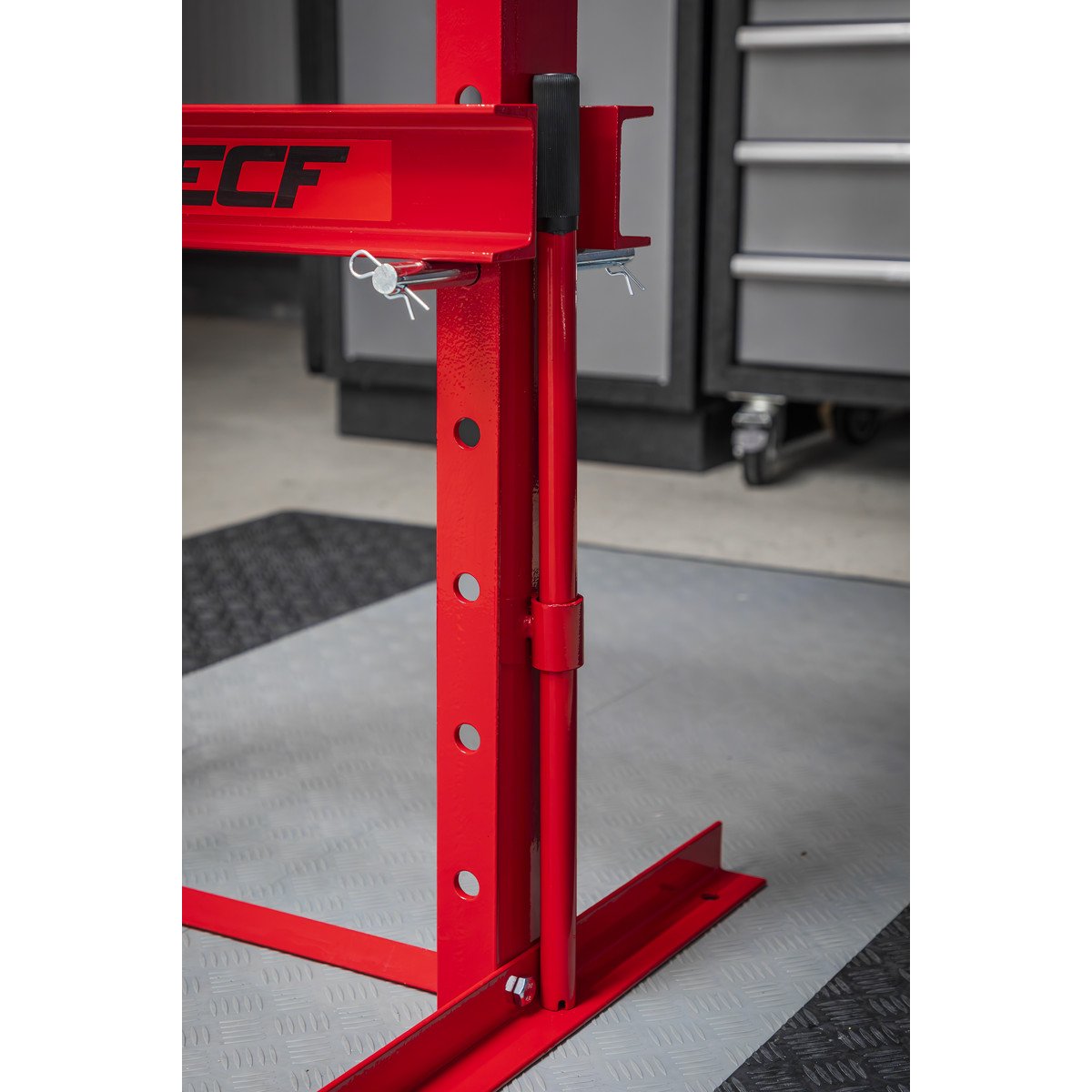

ADJUSTABLE TABLE - Simple relocation of two pins allows the table to be set at your optimum working height.

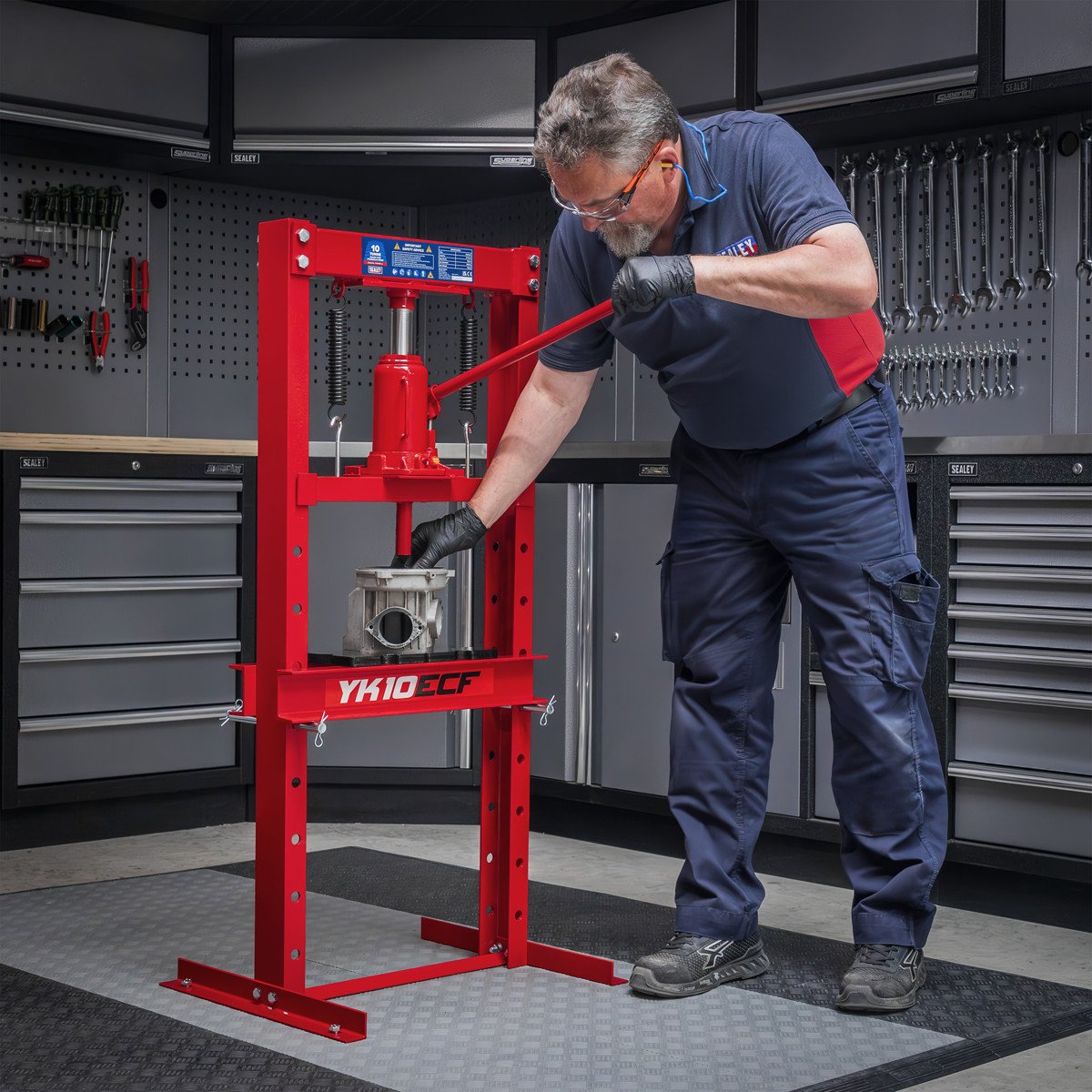

MULTI FUNCTIONAL - Designed to remove and install bushings, bearings, ball joints, universal joints, pulleys and gears.

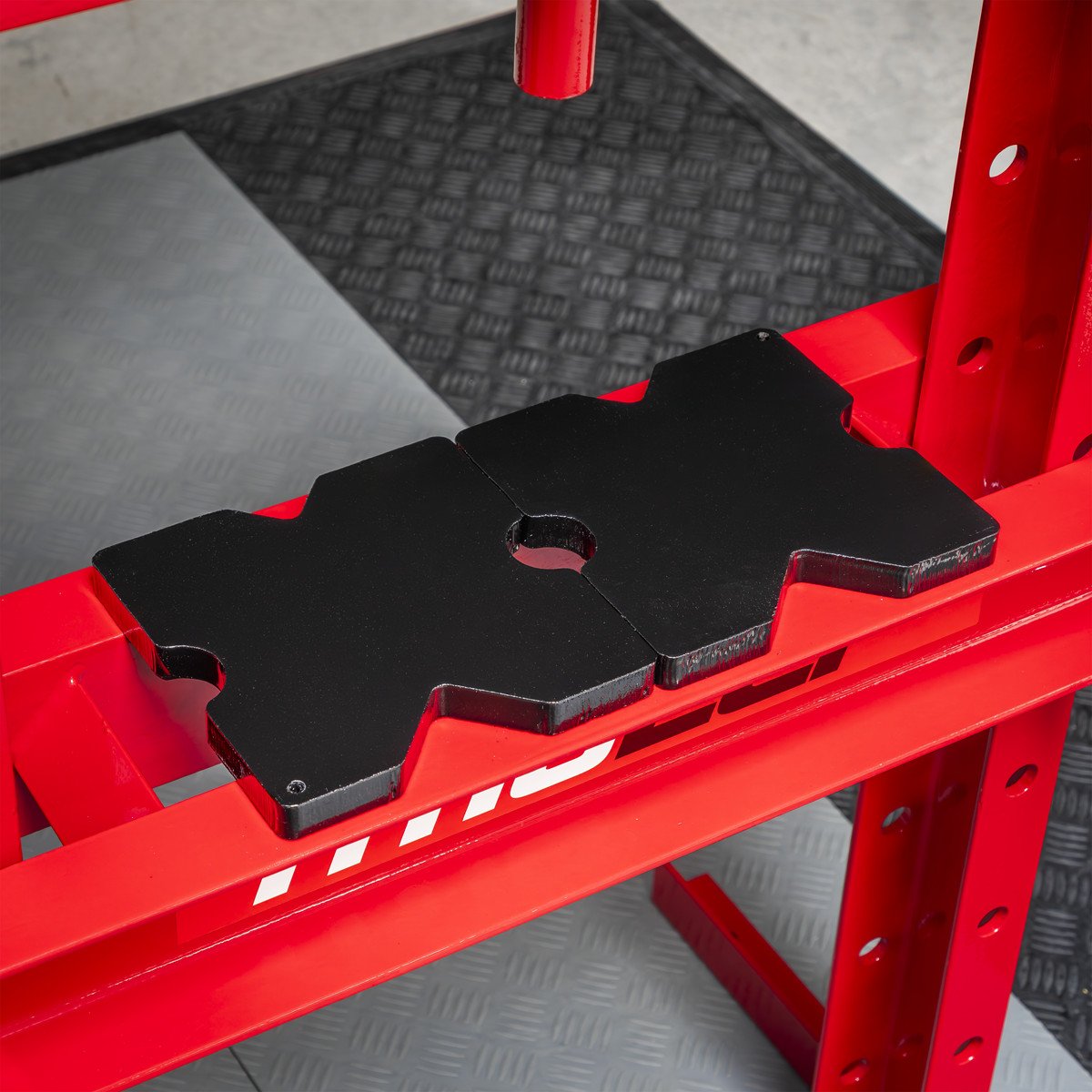

TWO ARBOR PLATES INCLUDED - Assisting alignment, and strengthening the press point position.
Warranty: 1 year Years
Sealey catalogue page number: 897
Variant number of the model: 003

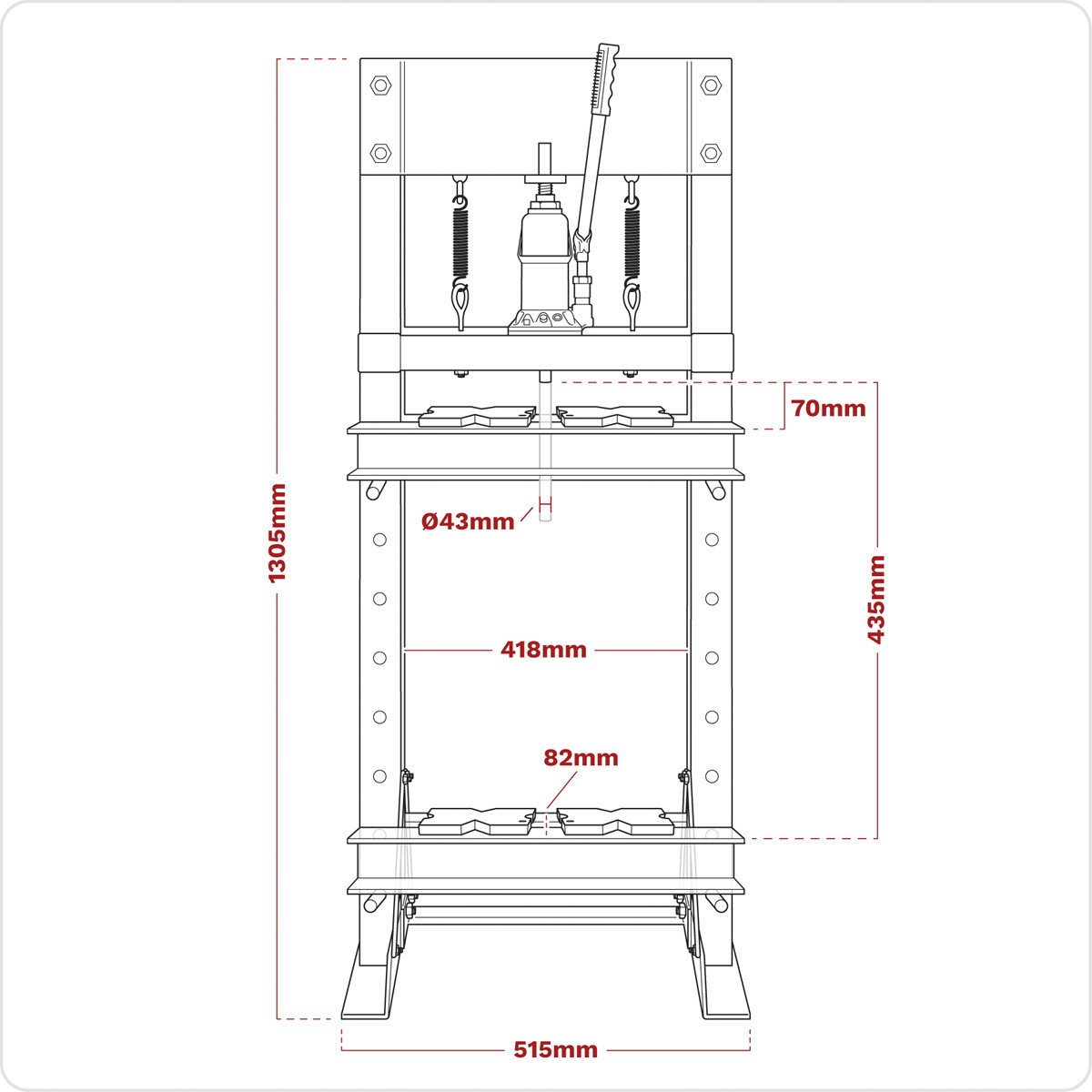

Specification:

Model No	YK10ECF
Bench or Floor Mounting:	Floor
Brand:	Sealey
Capacity:	10 Tonne
Gauge Included:	No
Lateral Ram Travel:	N/A
Maximum Height - Ram to Table:	603mm
Minimum Height - Ram to Table:	-150mm
Nett Weight:	48kg
Operating Table Width:	420mm
Optional Accessories:	N/A
Overall Height:	1230mm
Ram Diameter:	Ø43mm
Ram Stroke:	125mm
Screw Extension:	N/A
Table Aperture:	80mm
Type:	Hydraulic
Working Table Depth:	165mm
Working Table Width:	530mm
