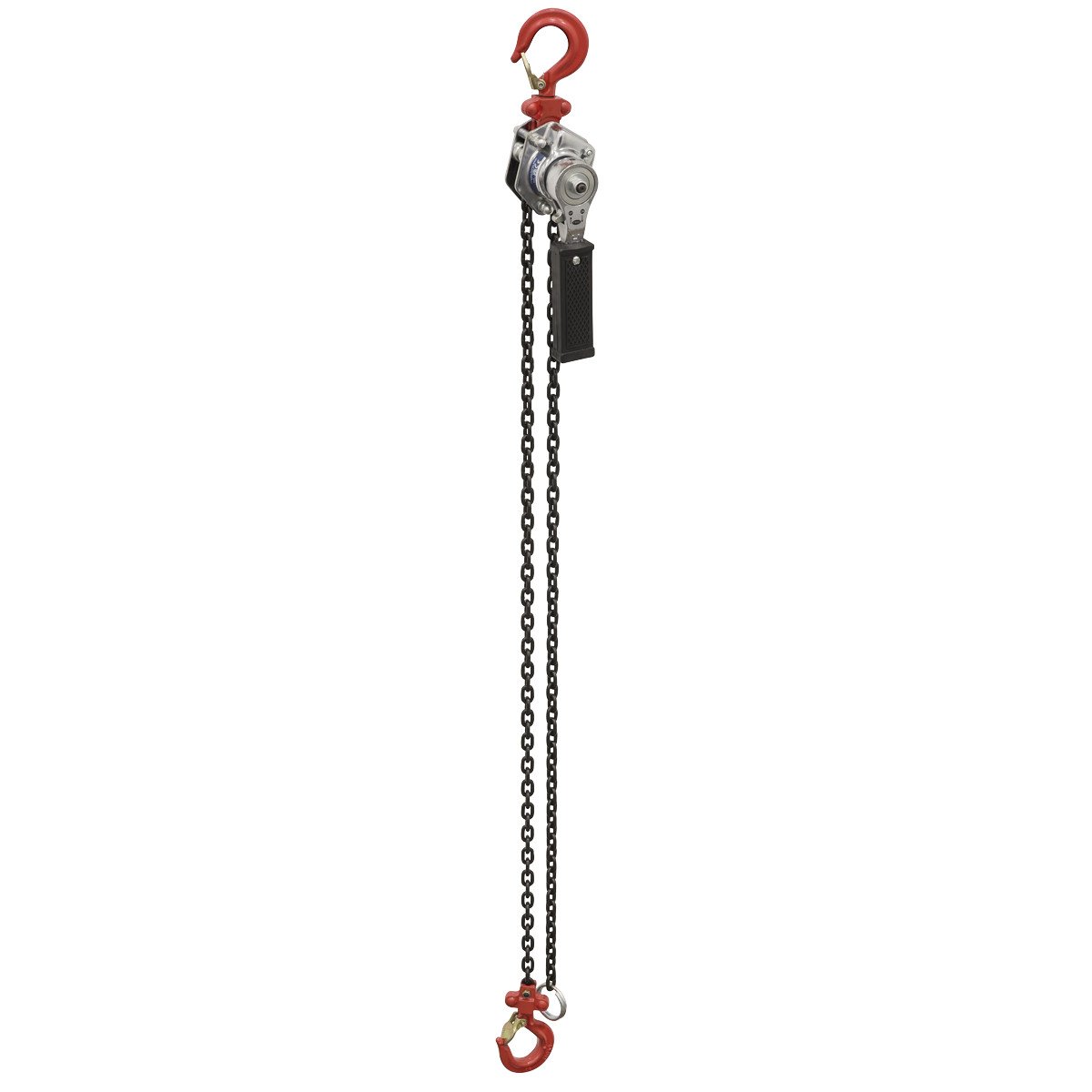

Sealey Mini Lever Hoist 250kg

Description

Delivery Information

Ask a question

Parts Diagrams

Instructions

Small and light design for easy use in confined conditions. Features drop-forged and heat treated pinion gear with totally enclosed mechanism. Hooks fitted with safety latches and rotate 360°. Free-chaining feature permits slack in the load chain to be taken up by-hand before engaging the ratchet arm. Provides total control on the load position. Please note this unit is for horizontal pull only.

Model Number: LH251
LIGHTWEIGHT AND COMPACT - Small and light design for easy use in confined conditions.
HEAVY-DUTY GEARING - Features drop-forged and heat treated pinion gear with totally enclosed mechanism.
SAFE AND ANTI-TWIST - Hooks fitted with safety latches and rotate 360�.
QUICK AND SIMPLE - Free-chaining feature permits slack in the load chain to be taken up by-hand before engaging the ratchet arm.
PRECISE - Provides total control on the load position.
HORIZONTAL PULL - Please note this unit is for horizontal pull only.
Warranty: 1 year Years
Sealey catalogue page number: 893
Variant number of the model: 002

Specification:

Model No	LH251
Brand:	Sealey
Capacity:	250kg
Chain Falls:	1
Chain Length:	1m
Head Room:	240mm
Hook Aperture:	14mm
Lever Length:	150mm
Load Chain Diameter:	Ø4mm
Maximum Hook Capacity �:	28mm
Nett Weight:	2kg
Operating Clearance:	60mm
Pull on Lever to Lift Full Load:	235N
Size (W x D):	85 x 92mm
Test Load:	375kg
